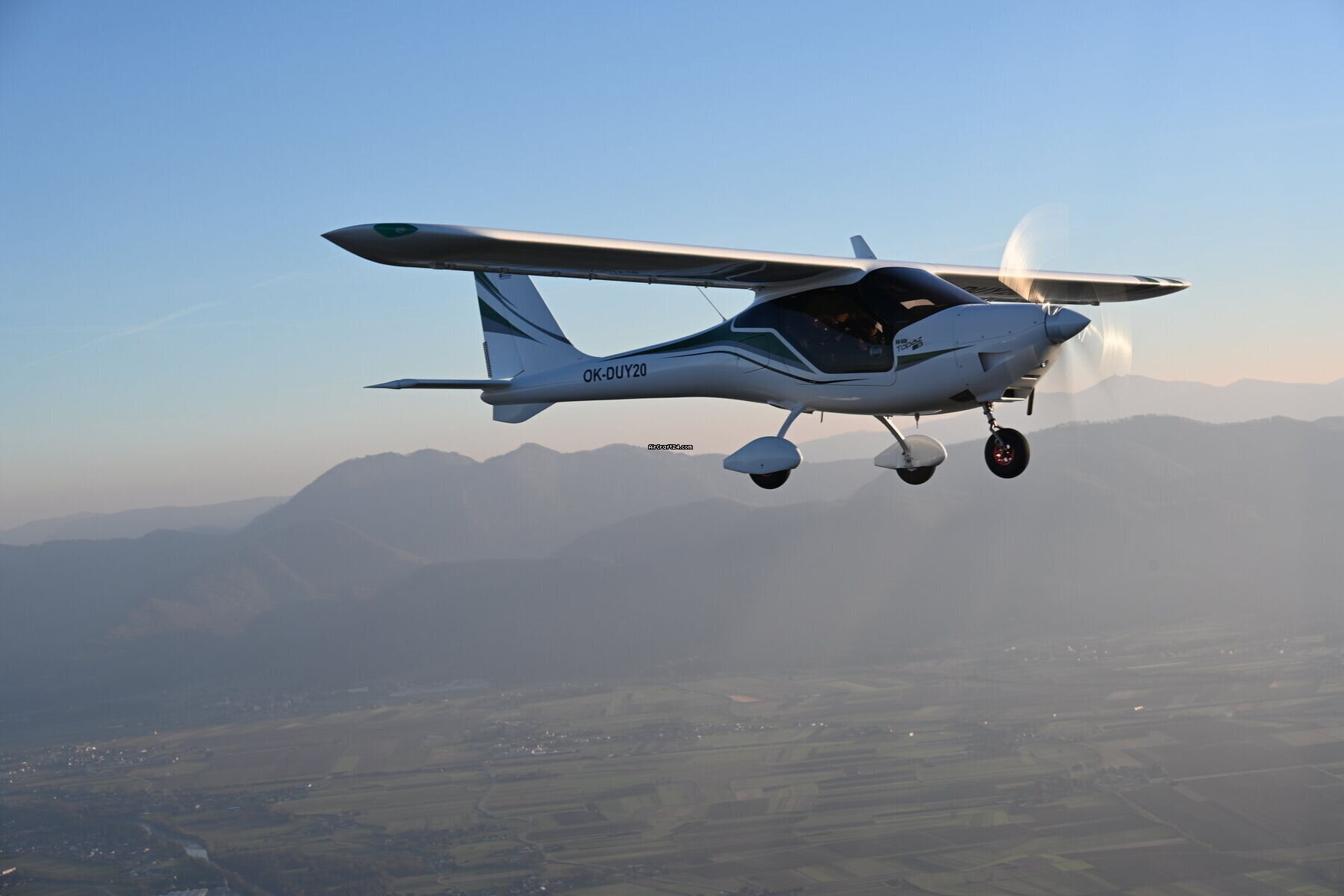

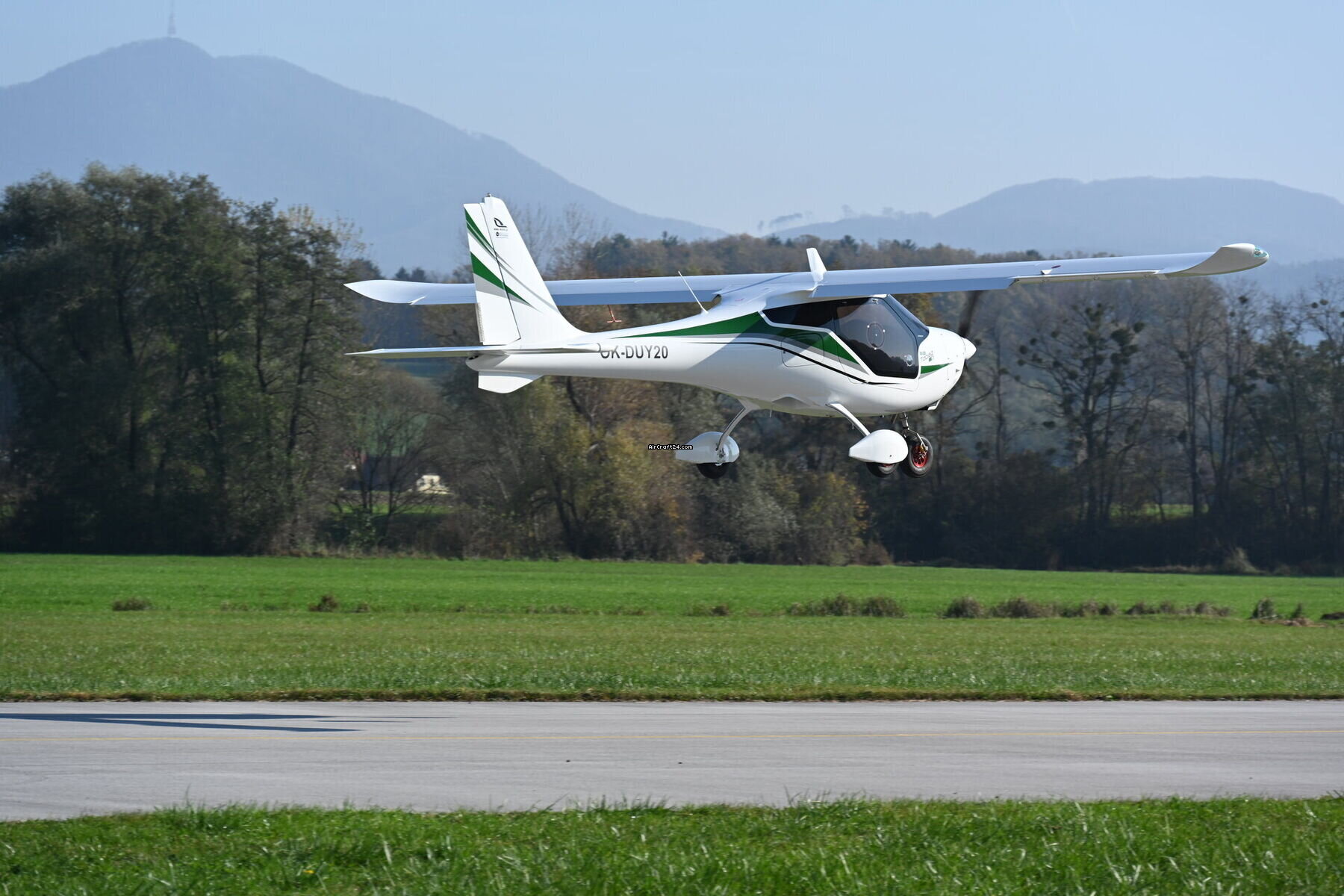

Ekolot Topaz KR-30 - 600 |
CAD 220,145
€ 137,000 |
Overview
| Base data | | Type: | Single Prop | | Special Type: | Light Sport Aircraft
Aerial work | | Make: | Ekolot | | Model: | Topaz KR-30 - 600 | | Year built: | 2024 | | Registration No.: | OK-DUY20 | | Serial No.: | 30-15-01 | | Attributes: | Always hangared | | Location: | Slovenia, Slovenske Konjice, LJSK | | Total Time (TTAF): | 160 h | | Price: | € 137,000
(~ CAD 220,145) | | EU VAT paid: | no | | Full details |
|
|
|
Full Details
| Base data | | Type: | Single Prop | | Special Type: | Light Sport Aircraft
Aerial work | | Make: | Ekolot | | Model: | Topaz KR-30 - 600 | | Year built: | 2024 | | Registration No.: | OK-DUY20 | | Serial No.: | 30-15-01 | | Attributes: | Always hangared | | Location: | Slovenia, Slovenske Konjice, LJSK | | Total Time (TTAF): | 160 h | | Price: | € 137,000
(~ CAD 220,145) | | EU VAT paid: | no | | Landings: | 210 |
| Engine(s) | | Number of engines: | 1 | | Make/Model: | Rotax 912 ULS 2-01 | | Serial No.: | 10004749 | | Power: | 100 PS | | Total Time: | 170 h | | TBO (hours): | 2000 h | | Prop Make/Model: | DUC SWIRL3 | | Prop Total Time: | 170 h |
| Description/Details of engines | | Electric carburetor heating, oil thermostat |

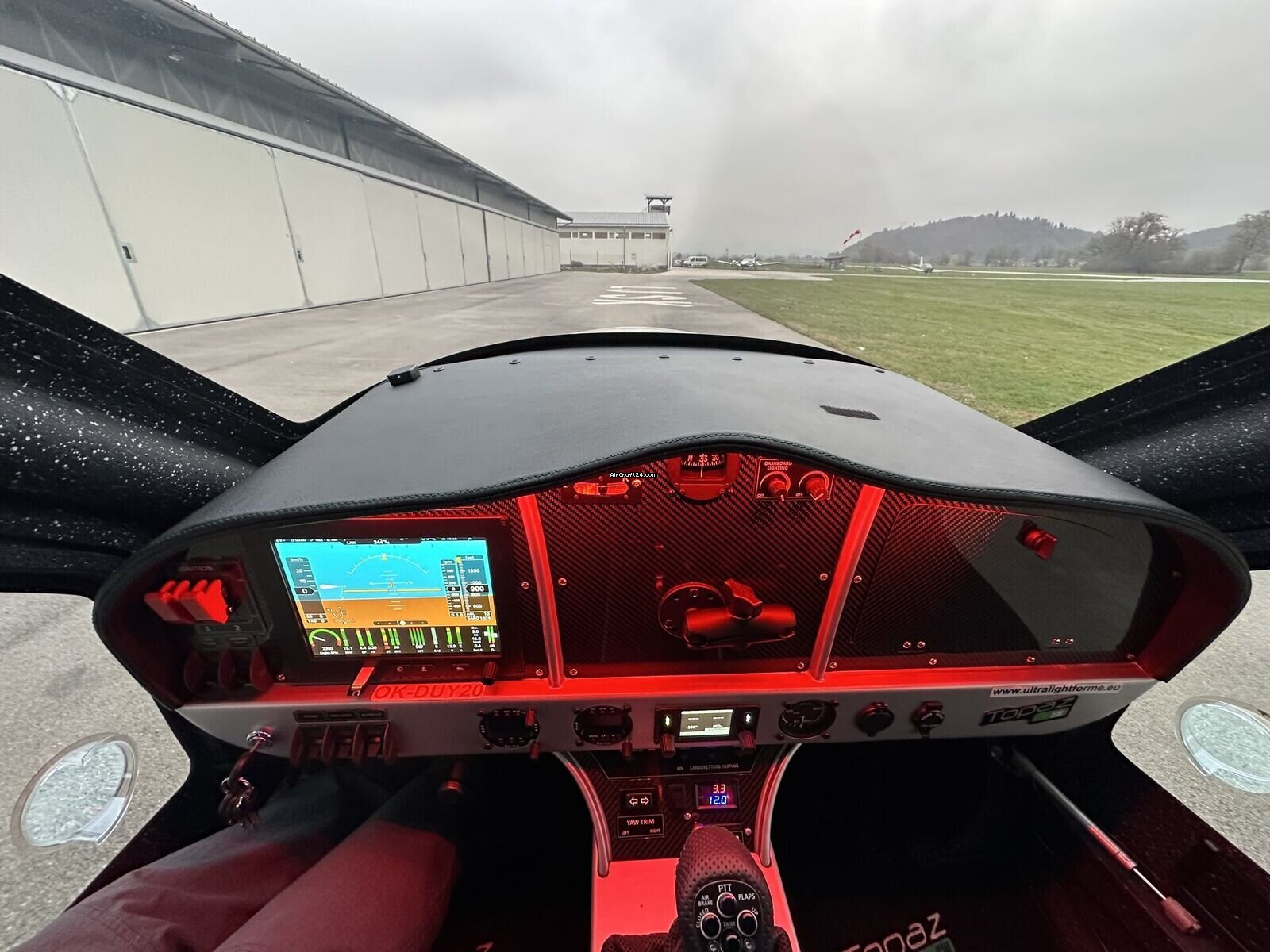

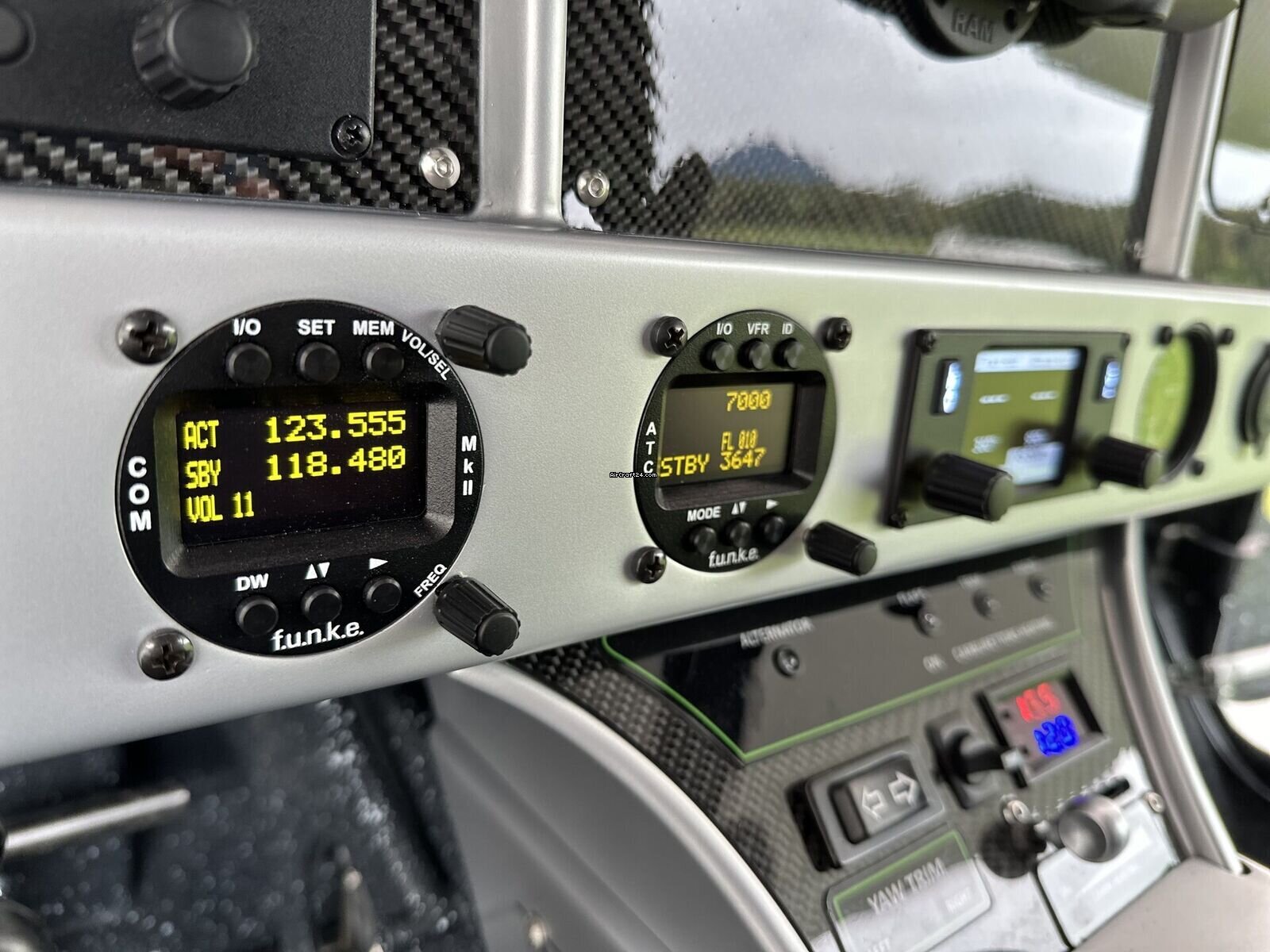

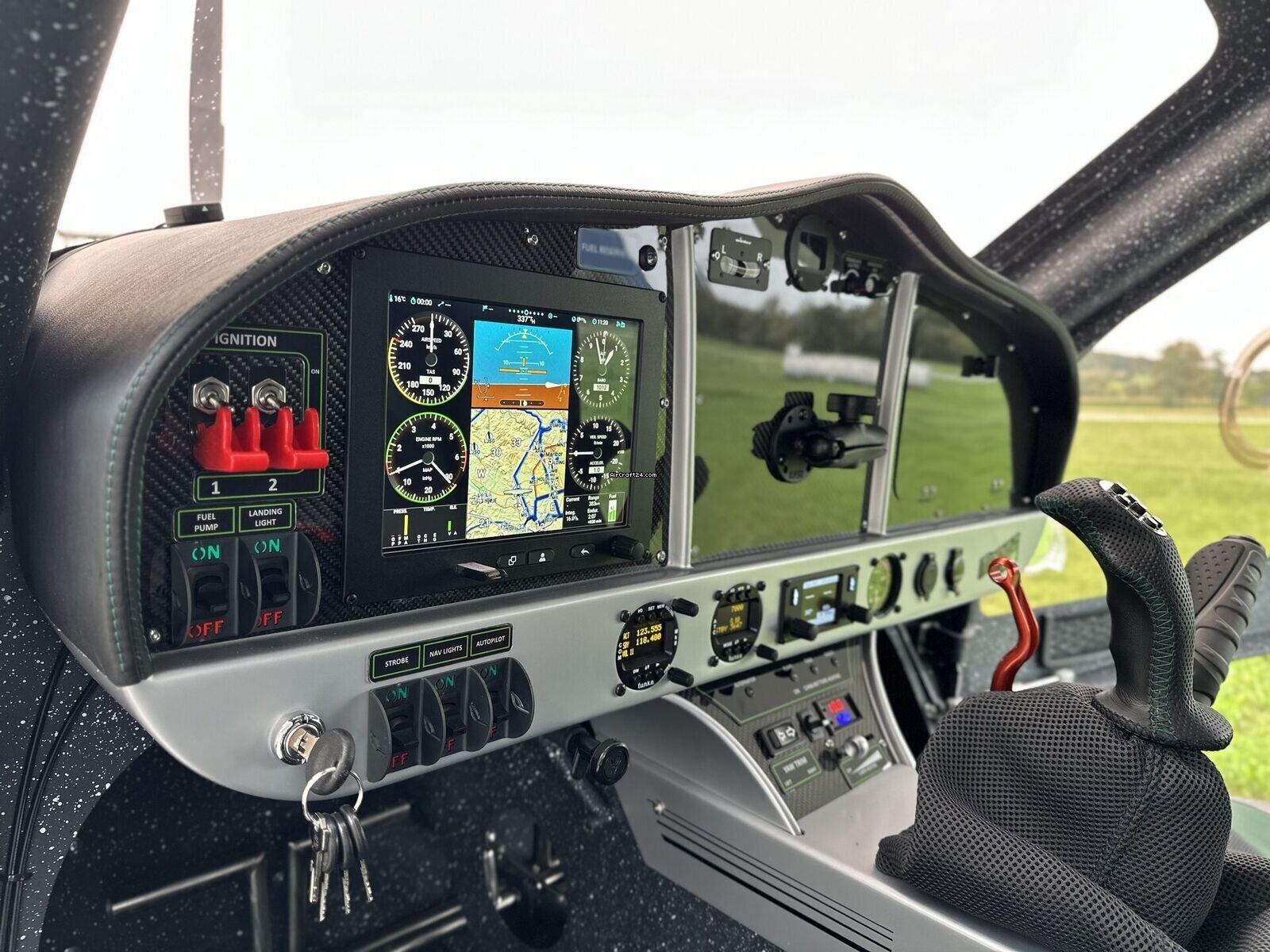

| Avionics | Transponder (Funkwerk TRT 800 Mode S, Mode A/C, ADS-B out).
VHF Radio (Funkwerk ATR 833=II Oled Dual Watch 8.33 kHz Supported directly from the EFIS Nesis III menu.- frequency entry- selection of frequencies saved in navigation).

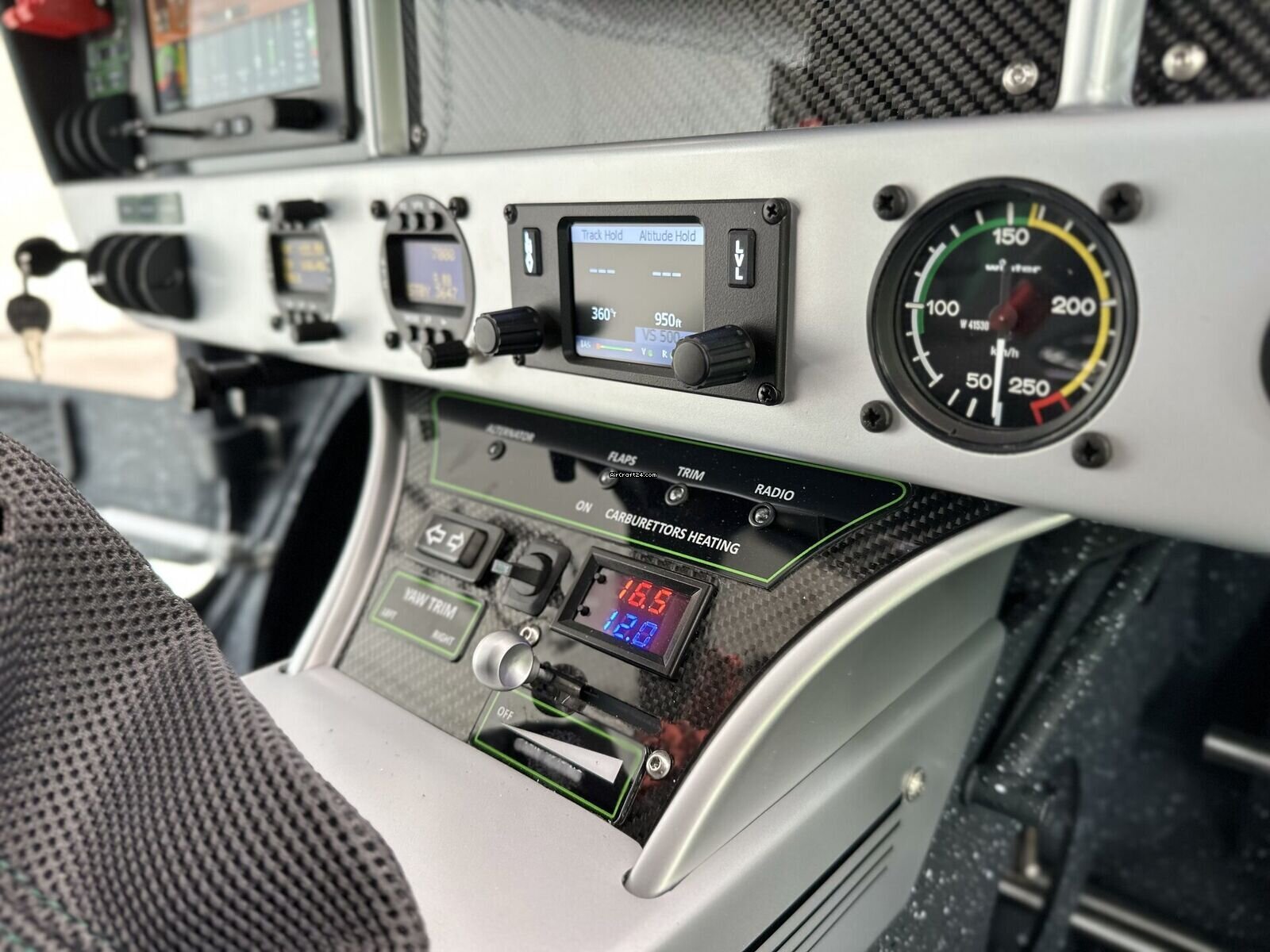

Autopilot Kanardia (2-axis autopilot system, elevator and ailerons, the aircraft must be equipped with rudder trim). Control modes: Level flight - using ailerons and elevator keep the plane in horizontal flight Heading - using ailerons it maintains set course relativ to the ground Vertical speed - using elevator it maintains the set vertical speed (ascent or descent) Altitude - using the rudder it reaches and then maintains the set altitude Flight Director - using ailerons, it flies to the destination set in navigation).
Headphones lemo and standard connectors

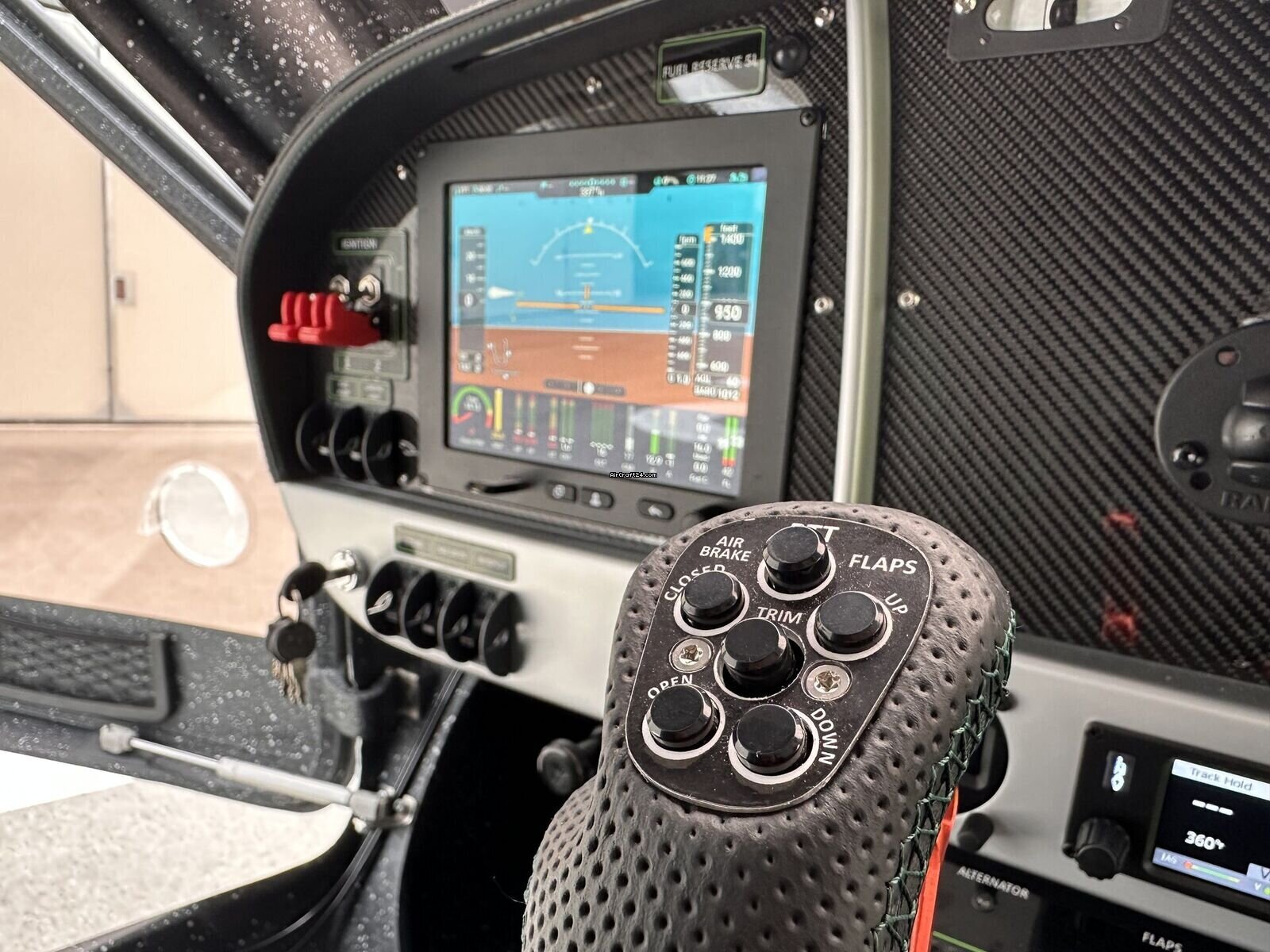

Stick, centrally positioned, allows you to control flaps - trim - PTT- Aux, air brakes, autopilot. |

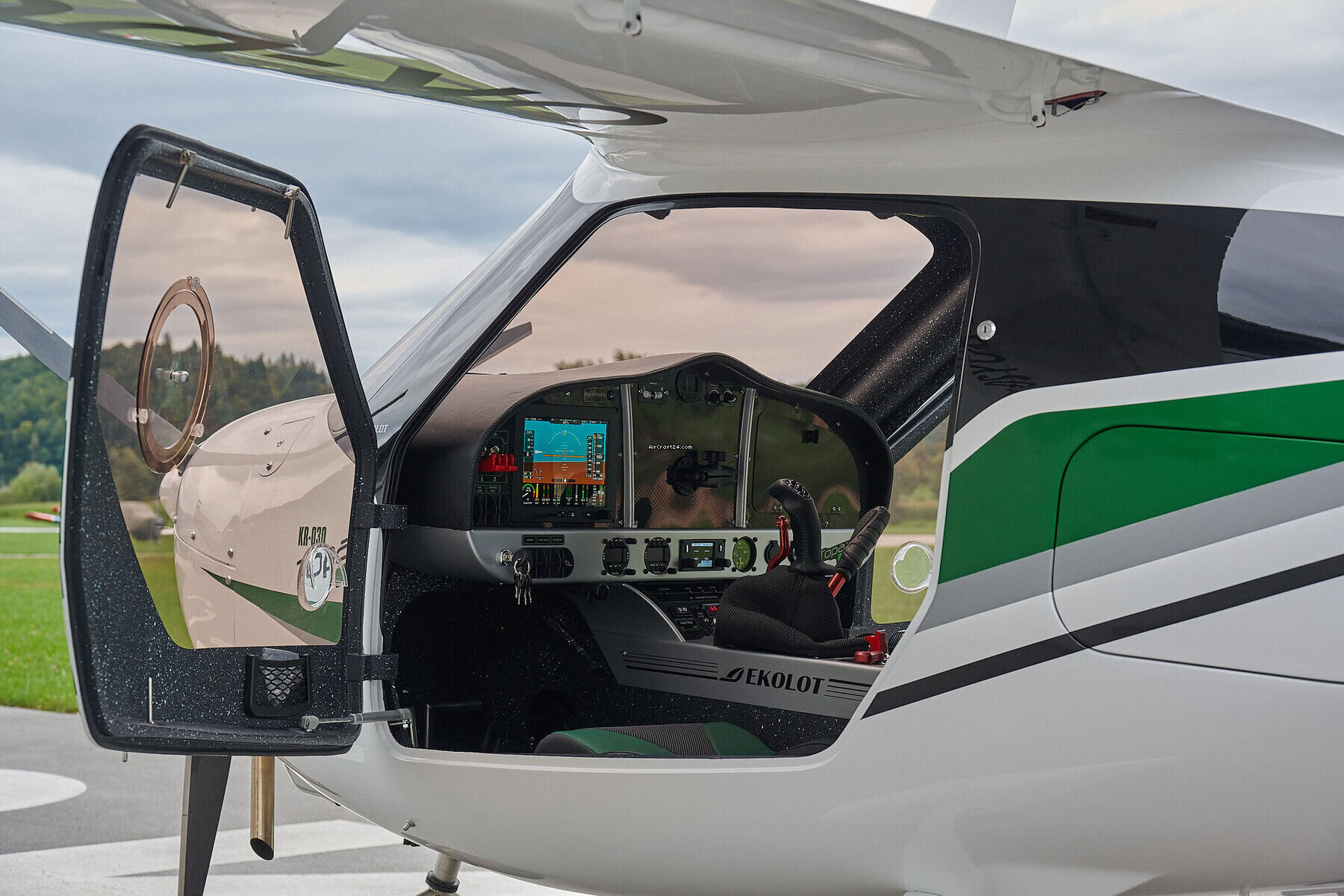

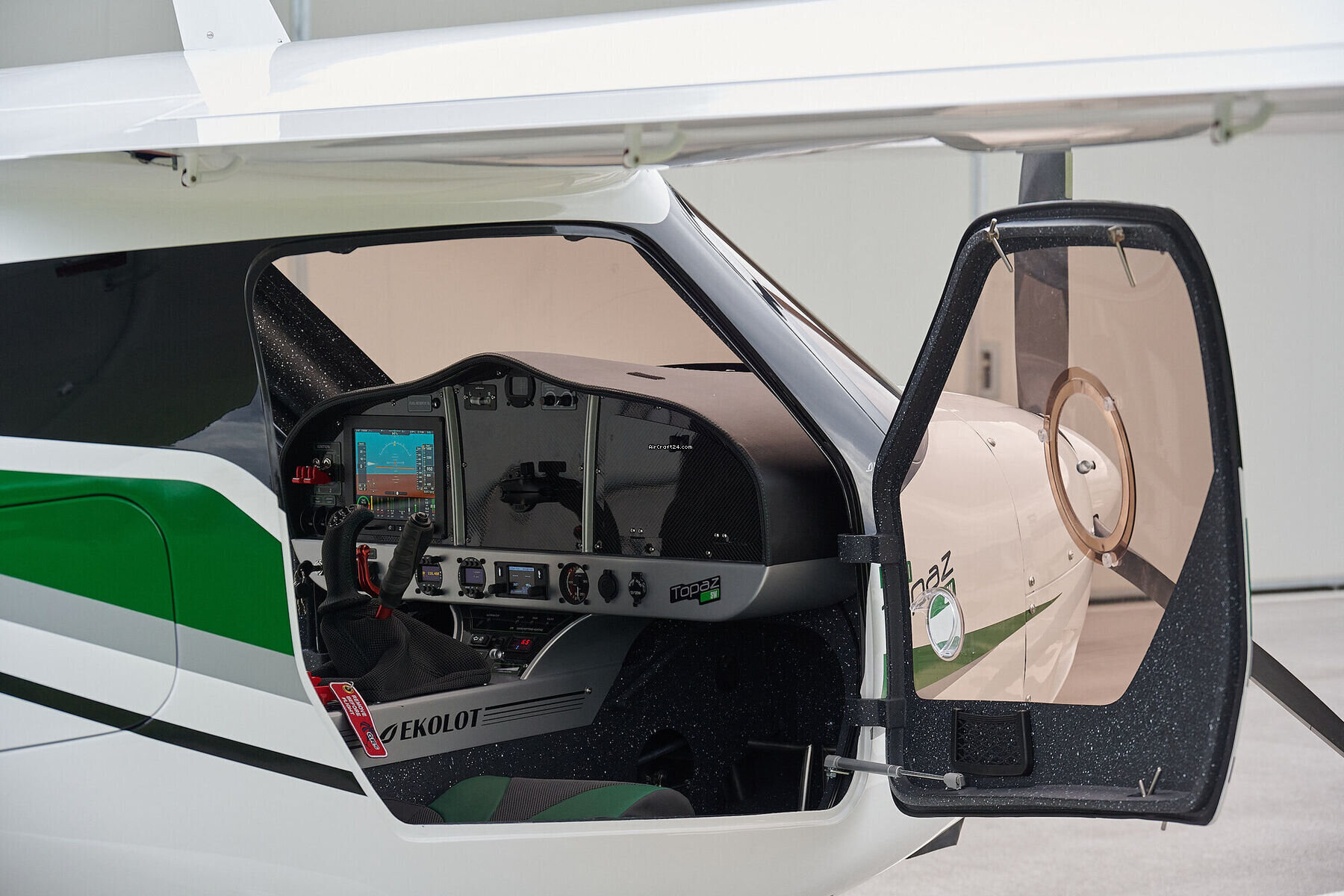

| Equipment | Cockpit width 1.2 m.

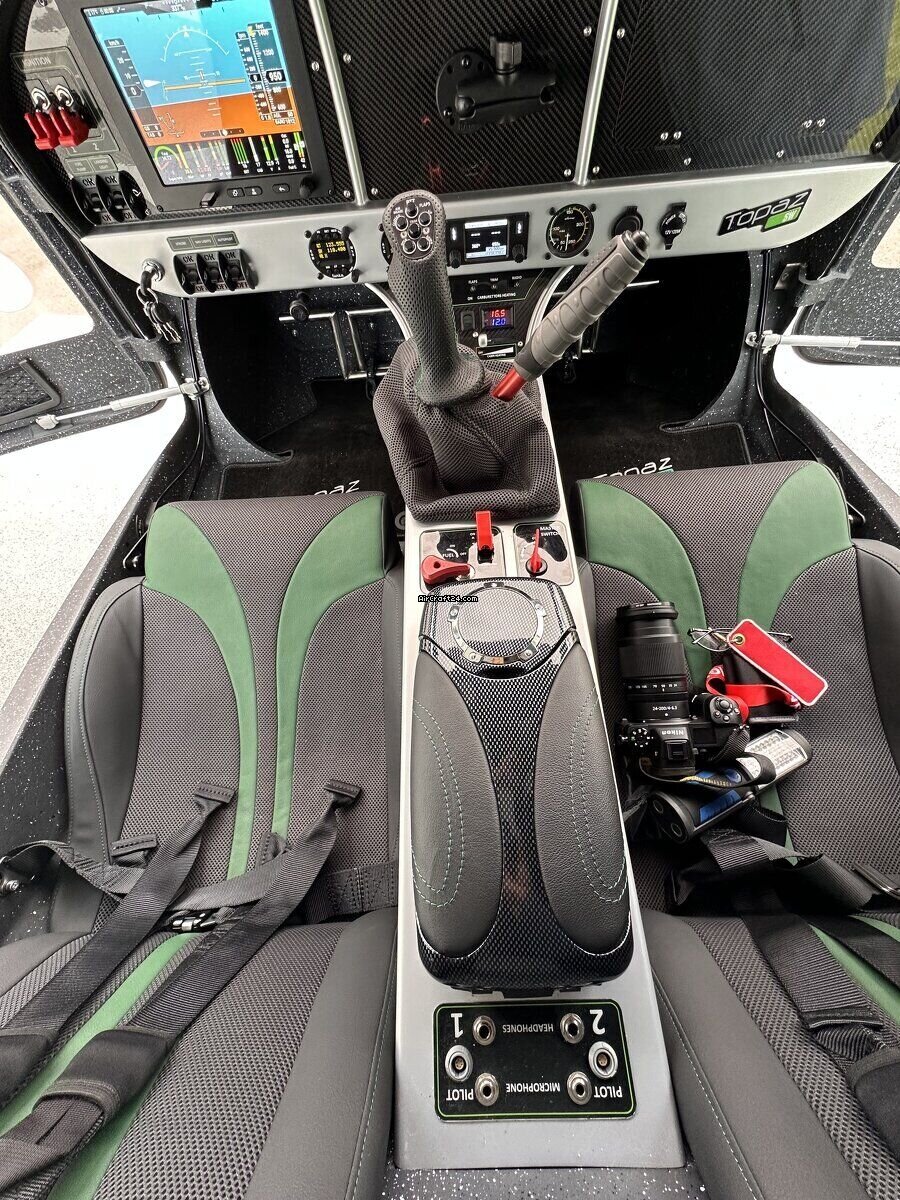

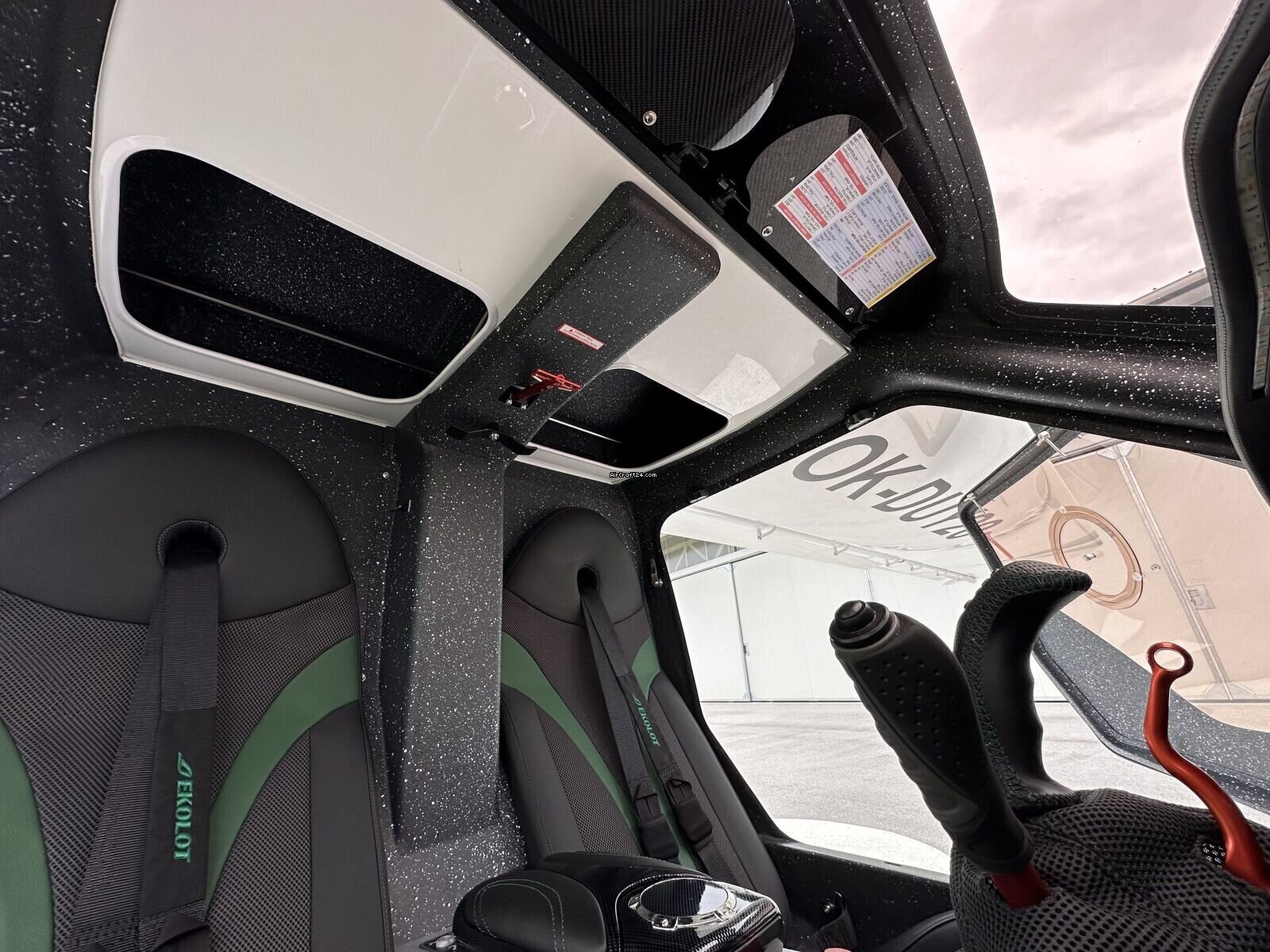

Seats with a shell structure made of composites. Cockpit cover - a wind-up glass made of ultraviolet-resistant acrylic glass (PMMA polymethyl methacrylate), side door also made of acrylic glass (PMMA), 3 mm thick, on a composite frame.
Vertical stabilizer integral with the fuselage. Tricycle landing gear with a front wheel.
Slotted flaps driven by the fuselage - electric, control on a joystick.
The aileron is made of carbon laminate due to the necessary high torsional stiffness, with the smallest possible mass (anti-flutter requirements) with a mass balance fixed at its end.
Wings air brakes controlled on stick.
Elevator and aileron trimmer - spring-loaded, electrically adjustable, control on the joystick
92 l fuel tanks mounted in the wings, 5 l fuel tank under the instrument panel
- Parachute rescue system(Galaxy to 600 kg)
- Brake system Beringer (Full Beringer brake kit: - main wheels with tubeless tires, Beringer brake calipers, Beringer discs, steel brake hoses - Beringer front tire with tubeless tire Beringer brake pump with parking brake pin.) |
| Exterior | Engine cover with Cam-Lock fasteners (Engine cowling made from carbon fiber with Cam-lock fastners. Inspection tap allows control of the oil level without removing the engine cowling.).

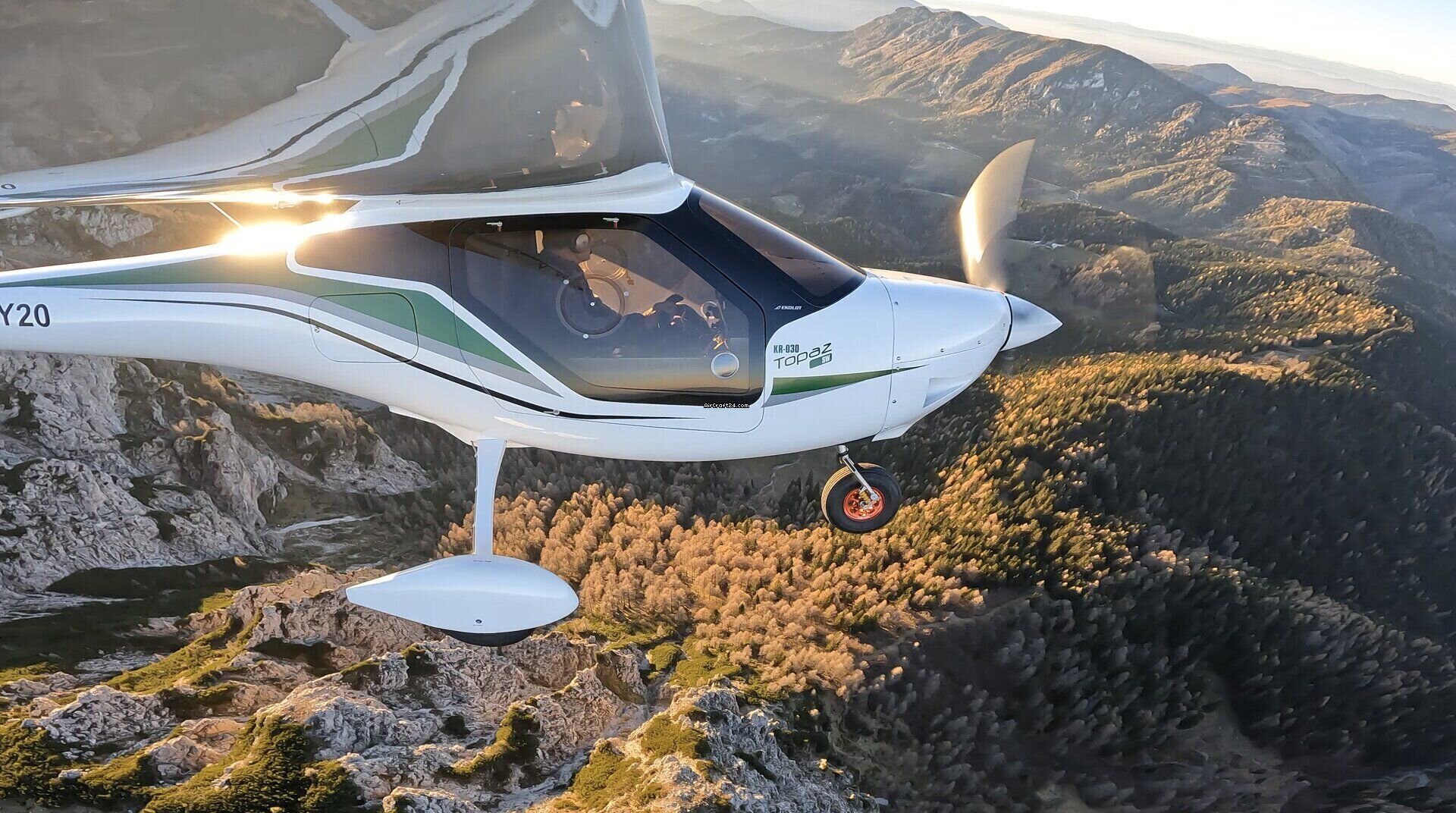

Wheel fairings (Fairings of the main wheels and front wheel. painted white).
Marker lights and strobe (Standard marker lights: red and green at the ends of the wings. White stroboscope on the vertical fin.)
Landing light.
Covers for the entire aircraft. |
| Interior | Tinted windows (Side and front windows slightly dimmed with PMMA 3mm).
Ventilation - cab heating(Two adjustable air inlets on side windows, Blowing air on the windscreen with variable speed, Adjustable heating of the cab.)

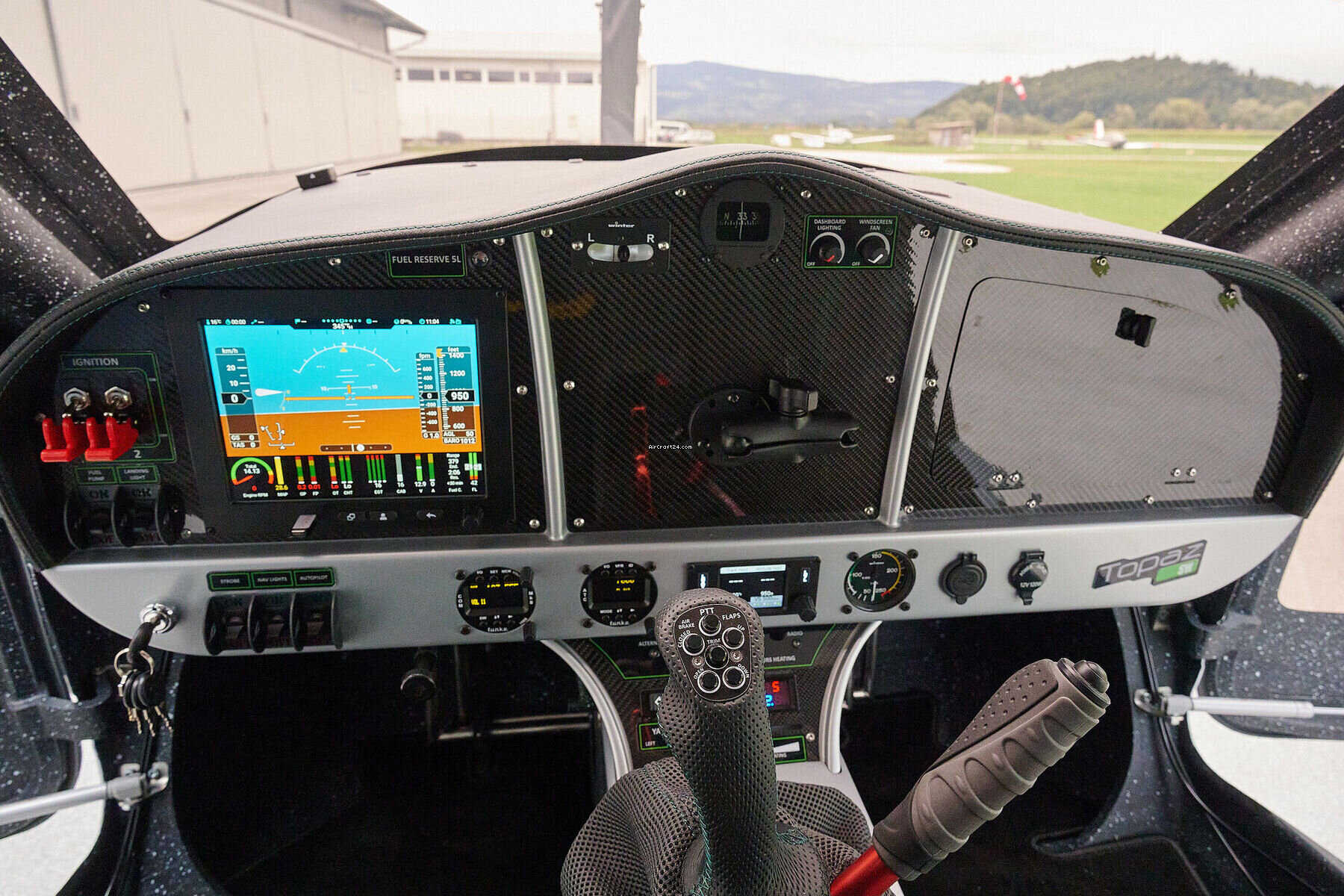

Exclusive package(Mesh containers for trinkets 2 pcs Mats on the door Armrest-container for trinkets glove compartment Instrument panel - carbon panels, Sun visors for the pilot and passenger USB socket Hanger for headphones). |

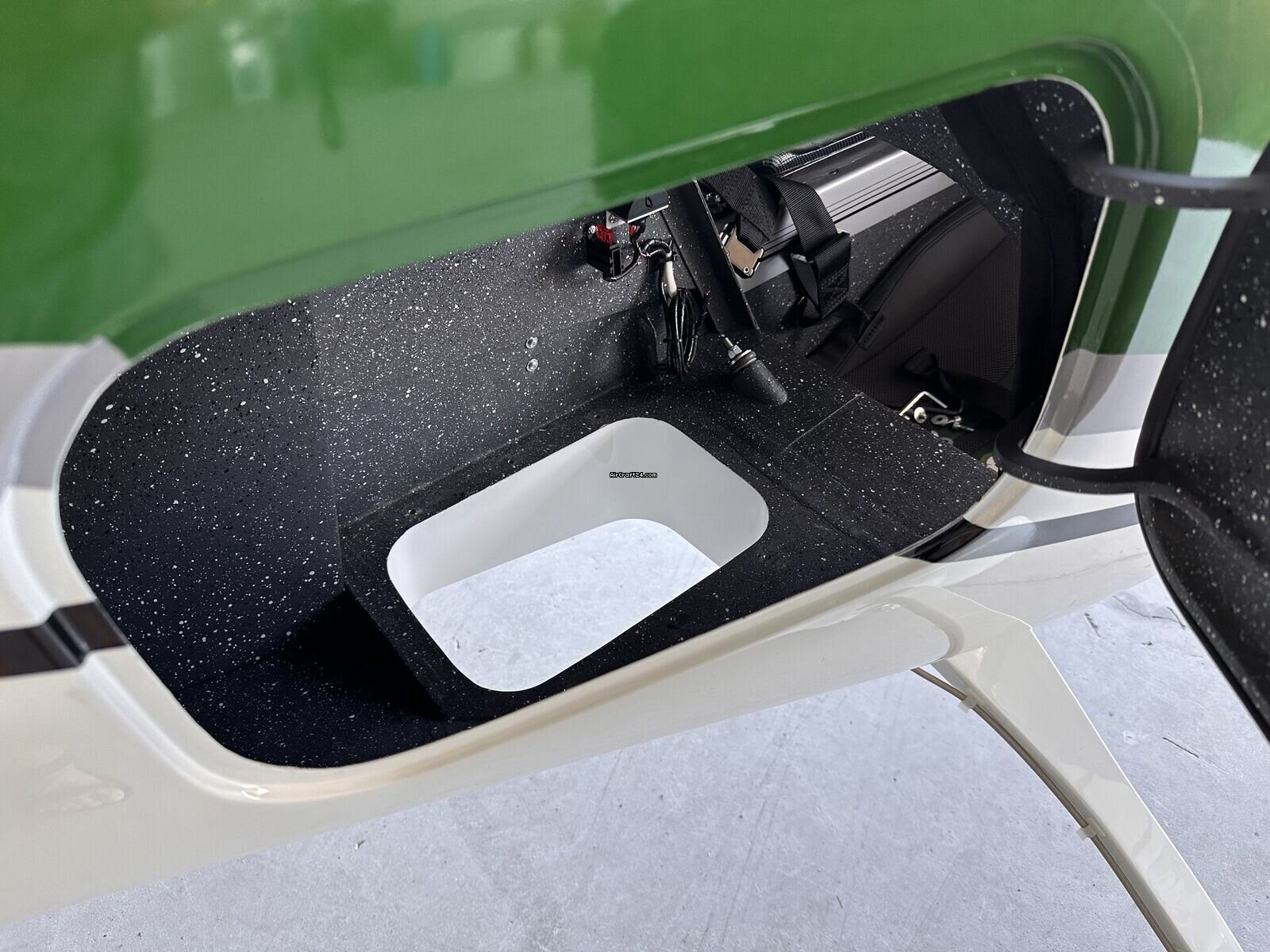

| Modifications/Conversions | | Factory made opening (with cover) in baggage compartment for vertical aerial imaging including 12V connectors. |
| Inspection Status | | September 2026 |
| Other remarks | | Value of new such aircraft is 162 000 eur + VAT |
